Line Spraying Machines

Line Spraying Machines

StrukturMatic S122

Spraying machine for structured spray coatings and primer.
Performance 15 kg/min.

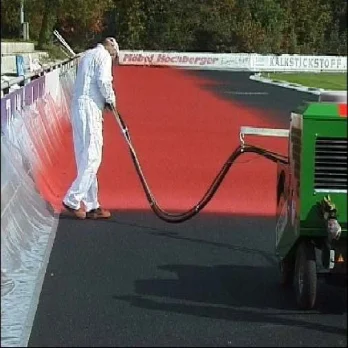

StrukturMatic S122 is able to apply all structural spray coatings, solvent-based, solvent-free and water-based PU-dispersions used in the sports surfaces construction industry. The machine is robustly constructed, extremely agile and easy to manoeuvre. With its swivelling, articulated bracket for the long spray hose it has an impressive action radius.

TurboSpray TS30 spraying pistol, with different material nozzles, is well-suited to handle thick, very compact and coarse-grained materials. Controllable pump pressure and adjustable air quantity reduce the spray vapour and produce a homogeneous spray finish at highest performance. Material throughput: 15 kg/min.

All control elements are ergonomically positioned and easy to operate. Control valves, pressure control and pressure valve are also easily accessible.

Technical Specs


LineStar LS15

Striping machine for synthetic sports surfaces and artificial turf.
Compressor, petrol engine

Striping and marking of sports surfaces require special accuracy and therefore high precision during application. In the majority of cases, national and international standards must be complied with. The concept and function of the LineStar LS15 are optimised to meet these strict requirements. When used with professional expertise, this striping machine is capable of achieving the highest standard.

Its powerful drive motor coupled to the compressor generates the compressed air required to power all functions. The pressure container for the line marking paint delivers the required quantity directly to the precision spray gun. All adjustments necessary for precise application of the paint can be made there.

With the help of LS15, line widths of 4 to 15 cm can be produced with line-marking paints, exactly as required. All functions for handling the machine are arranged at the machine steering handlebar and are very easy to control. It is very easy to use and therefore significantly reduces the work load of the operator.

On athletics tracks, smooth running is ensured through solid-rubber tires with precision bearings. To provide exact guidance for striping on artificial turf, an optional star wheel can be supplied.
